Case study · 03

Bohime KV

A sharded, Raft-replicated key-value store in Rust over gRPC, in about 830 lines

Stack
  • Rust
  • Raft
  • gRPC
  • Tokio
Links

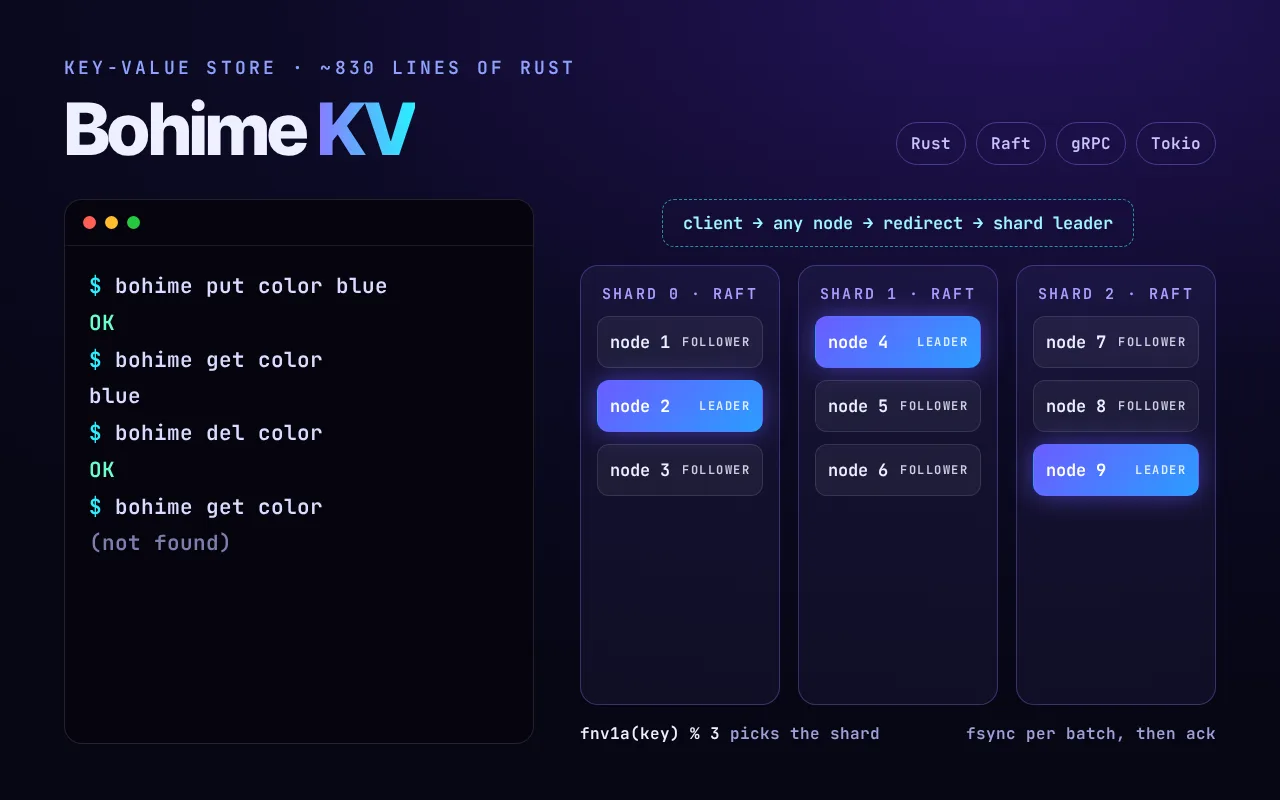

Screenshot of Bohime KV

Idea

A distributed key-value store kept as small as it can be: one node per shard replica, a single-file Bitcask, Raft with elections and log replication only, and fixed hash sharding. About 830 lines of Rust in one crate.

How it works

  • Sharding. Sorted node ids are cut into runs of rf, one shard per run. A key’s shard is fnv1a(key) % shards, and a node that gets another shard’s key redirects.
  • Replication. Every shard is its own Raft group, so shards share nothing and scale by adding rf nodes. Raft itself does no I/O: it changes state and queues messages.
  • Linearizable reads. Reads go through the log just like writes.
  • Durability. New log entries and the vote are written as one batch and fsynced on a separate thread. Nothing is acknowledged before it is on disk.
  • Storage. One append-only file per node: crc32 | key_len | value_len | key | value, with an in-memory index.

More

A full-featured branch adds snapshots, membership changes, shard migration, wait-free reads and a deterministic simulator.
